Do-it-yourself centering sanity check


  • Please log in to reply
40 replies to this topic

#1 Klaus

Klaus

    Chief Editor

  • Moderators
  • 4,478 posts
  • LocationSydney, Australia

Posted 05 April 2011 - 08:27 PM

Hi all,

we're frequently asked how to check the centering quality of a lens. There's, of course, no simple check which covers the whole scope. However, here at PZ we've a quick and dirty "sanity" check for new lenses that you could also use.

This sanity check covers only ONE KIND of centering - "shifted" elements.

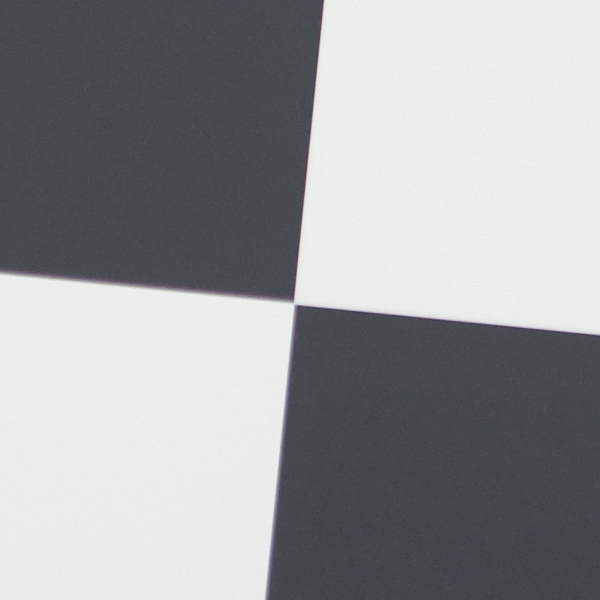

Now what is that ? Let's have a look at the following 100% sample crop from an IMAGE CENTER:

Posted Image


You may notice that there are two soft edges and two "fairly" sharp ones. This is a centering defect "classic" which covers about half of the centering defects out there.
Such kind of decentering occurs mostly at the tele end of a zoom lens. This one was taken from a Sony 28-75/2.8 @ 75mm @ f/2.8. That said every once in a while this does also happen with prime lenses.

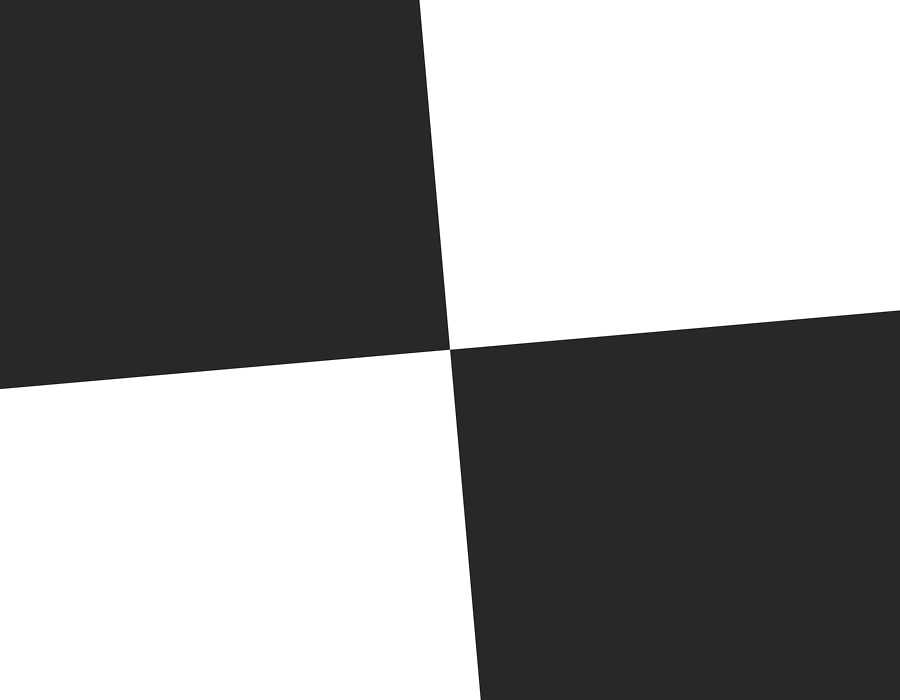

How to check ? Now take the following template:

Posted Image



It's best to download the image and show it full screen at 100% - no more, no less.

This is, obviously, the "perfect shot" (artificially generated, of course).

Dirty approach:

1. take your lens, attach it to your camera, SELECT MAX APERTURE and switch to LiveView mode
2. go to the max. tele setting (if applicable)
3. move back from the screen (depends on the lens, say roughly e.g. 3m for a 50mm lens. You should NOT be able to spot any screen pixels anymore in magnified LiveView mode)
4. enlarge the LiveView mode to maximum magnification (e.g. 10x, 15x whatever your camera offers here)
5. DEFOCUS the lens
6. point the center of the lens straight to the center of the test image. MAINTAIN the 5 degree tilt of the edges!

Now the important part:
7. FOCUS SLOWLY towards the focus and OBSERVE how the 4 edges GET SLOWLY SHARPER

A well-centered lens should have a strictly symmetrical focus blur as well as a strictly symmetrical sharpness once you reached focus. If you got a decentered lens you will already notice that there's no strict symmetry anymore once you approach the focus. It's actually slightly easier to observe in slighly defocused images.

This does not work on the Pentax K-5 and, I suspect, other Pentax DSLRs.

If you want it correctly - do it with a tripod and take a picture with LiveView AF and check the result (this does, of course, work with Pentax DSLRs).

Just give it a try .... Posted Image

You can simply upload it to you laptop, take it to the shop and do it on location when buying a new lens.

PS: No, this is no late April's fool joke.
